KEY COMPONENTS OF A SKE PEDESTAL BOOM ROCK BREAKER SYSTEM

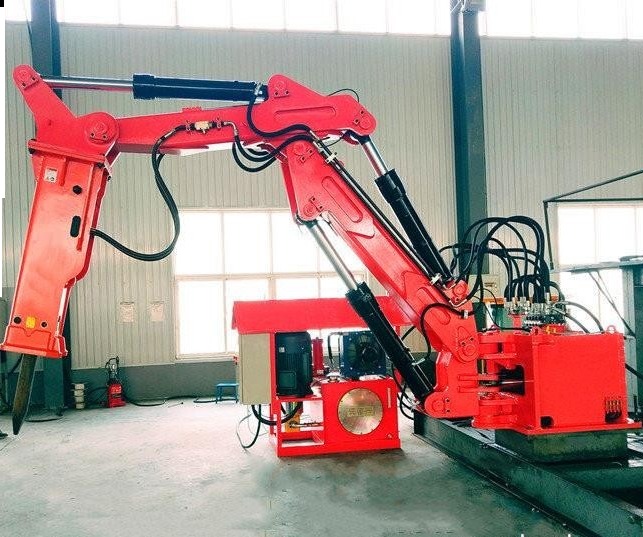

SKE Pedestal Rock Breaker Boom System is a stationary unit, a machine designed to manipulate large rocks, including reducing large rocks into smaller rocks.
They are typically used in the mining, quarrying, aggregate, cement, metallurgical and foundry industries to remove oversize rocks that are too large or too hard to be reduced in size by a crusher or grizzly.
SKE Pedestal Rock Breaker Boom System consist of four major components: pedestal booms, hydraulic hammer, hydraulic power unit and operating control. We are one of the largest manufacturers of these machines and we are the exporters to Dubai, Abu Dhabi, other parts of United Arabian Emirates (UAE), Saudi Arabia, Oman, Kuwait, Qatar, Bahrain, Iraq, Egypt, Malaysia, Singapore etc.
APPLICATIONS SKE PEDESTAL BOOM ROCK BREAKER SYSTEM
1. Uses for Underground or Opencast Grizzly Screen (Grid)
Grizzly applications are extremely harsh by nature, this is a continuous primary crushing process. SKE grizzly Pedestal Rock Breaker Boom System are designed with wide boom cross sections, extra large pins and reinforced high tensile steel plates. Pedestal Rock Breaker Boom System is subject to high degrees of in-line and side raking, combined with various sizes and amounts of oversize. All designed to handle complex loading to the boom, whether it below or above ground.
2. Uses for Stationary Primary Crushing Plants
A. Jaw crusher & Impact Crusher
Jaw crushers and impact crushers are most often fed from a rock box using a vibratory feeder. So SKE high strength Pedestal Rock Breaker Boom System should be mounted on crushing line steel structure, concrete foundations or on separate supporting column to break excessively large stones or to unblock the transport route to crushers.
Rock breaker boom system is mainly used to reduce oversized boulders and rake all rock materials into the crusher, and to be able to reach into the crusher mouth or hopper to assist with processing and clearing jams. These systems offer the widest range of boom reach and breaker sizes in the industry, in a word, SKE Pedestal Rock Breaker Boom System is a simple, cost-effective and safe breaking solution.
B. Gyratory Crusher
Big jobs need big rock breaker boom systems. SKE wide range of gyratory Pedestal Rock Breaker Boom System allow full breaker coverage within the rock box and mouth of the gyratory crusher.
SKE complete line of large and high-powered rock breaker boom systems are designed specifically for gyratory crusher to quickly eliminate any bridging or clogging, restoring consistent material flow to the conical crusher or release cave-ins (vaults) in the cone crusher. Rock breaker systems are usually placed on the rugged steel structure of a cone crusher.
3. Uses for Mobile & Portable Crushing Plants
Mobile crushers use small rock breaker boom systems mounted directly on the structure of the mobile crusher, so the mobile crusher can be moved without first dismantling the rock breaker boom system assembly yet be large enough to handle the raking and breaking. SKE mobile crusher Pedestal Rock Breaker Boom System are compact, tough and fitted with high-powered mine and quarry duty hydraulic hammers to give maximum performance
4. Uses for Foundry Industry & Metallurgical Industry
Foundries, metallurgical smelters and steel mills are among the worst working environments. SKE custom pedestal boom system has a unique design, it will help the factories to improve work efficiency (such as save time in the extraction of all slag and refractory brick), and also play an efficient and safe role in shelling, brick breaking, unpacking and slag cleaning of metallurgical furnaces and mobile ladles.
Thanks to their 2IN1 radio remote control system, SKE pedestal boom system provide total safety for the operator. They are suitable for areas where access of an excavator is too difficult.
5. Other Uses
Provide professional customized services according to the actual working conditions and needs ot the end users.
Such as: recycling plants, tunnelling, dig cement in the cement plant, assist car dumper to unload, Port coal unloading, railway wagon planisher, grab and transport garbage at municipal garbage treatment station, dig clams on the sea, remove rust from the hull, Loading, unloading and handling of timber, etc...
FEATURES
- ➡️ SKE-A, SKE-B, SKE-C & SKE-D SERIES.
- ➡️ RECTANGULAR TUBE DESIGN, STEEL STRUCTURE IS MORE STRONGER.
- ➡️ REINFORCED PIVOT POINT, OVERSIZED PIN SHAFT,
- ➡️ AND HEAT-TREATED STEEL BUSHINGS ENSURE SUPERIOR STRENGTH AND PRECISION.
- ➡️ SPECIALHYDRAULIC CYLINDERWITH BUFFER UNIT.SUPER URGE DIAMETERPISTONAND RSTON ROD, ENSURETHEDURABLITYOFHEAVYDUTYWORKIN HARSH ENVRONMENT.
- ➡️ 360°ROTATION.
- ➡️ EMBEDDED PARTS FOR CONCRETE FOUNDATIONS OR FOUNDATION CONNECTORS FOR STEEL STRUCTURE FOUNDATIONS.
SKE - A SERIES
| Model No | Units | SKE 300 | SKE 400 |
| Boom Weight (Without Hammer) | Kg | 1912 | 2014 |
| Max.Horizontal Working Radius (R1) * | mm | 4880 | 5850 |
| Max.Vertical Working Radius (R2) * | mm | 3340 | 4240 |
| Min. Vertical Working Radius (R3) * | mm | 1610 | 1910 |
| Max. Height (H1) * | mm | 3340 | 4240 |
| Max.Working Depth (H2) * | mm | 3170 | 3140 |
| Rotation | 360° | 360° | |
| Pedestal Size | mm | 801 | |
| Hydraulic Hammer Model | SKE 11- SKE 14 | ||
| Power Of Hydraulic Power Unit | Kw | 18/22/30 | |
SKE - B SERIES
| Model No | Units | SKE 350 | SKE 450 | SKE 500 | SKE 600 |
| Boom Weight (Without Hammer) | Kg | 3030 | 3160 | 3250 | 3410 |
| Max.Horizontal Working Radius (R1) * | mm | 5890 | 6960 | 7330 | 8280 |
| Max.Vertical Working Radius (R2) * | mm | 3830 | 4900 | 5310 | 6230 |
| Min. Vertical Working Radius (R3) * | mm | 1790 | 1730 | 2150 | 1600 |
| Max. Height (H1) * | mm | 3580 | 4130 | 4600 | 4800 |
| Max.Working Depth (H2) * | mm | 3750 | 4600 | 4800 | 5800 |
| Rotation | 360° | 360° | |||
| Pedestal Size | mm | 901 | |||
| Hydraulic Hammer Model | SKE 18- SKE 20 | ||||
SKE - C SERIES
| Model No | Units | SKE 500 | SKE 550 | SKE 630 |
| Boom Weight (Without Hammer) | Kg | 6390 | 6410 | 6510 |
| Max.Horizontal Working Radius (R1) * | mm | 8100 | 8560 | 9120 |
| Max.Vertical Working Radius (R2) * | mm | 5900 | 6270 | 7100 |
| Min. Vertical Working Radius (R3) * | mm | 2690 | 2600 | 2705 |
| Max. Height (H1) * | mm | 5650 | 5650 | 6360 |
| Max.Working Depth (H2) * | mm | 4640 | 5250 | 5880 |
| Rotation | 360° | 360° | ||
| Pedestal Size | mm | 1400 | ||
| Hydraulic Hammer Model | SKE 20F -SKE 22 | |||
| Power Of Hydraulic Power Unit | Kw | 55/75 | ||
SKE - D SERIES
| Model No | Units | SKE 600 | SKE 650 | SKE 670 | SKE 750 |
| Boom Weight (Without Hammer) | Kg | 7580 | 7680 | 7720 | 7882 |
| Max.Horizontal Working Radius (R1) * | mm | 8940 | 9410 | 9600 | 10390 |
| Max.Vertical Working Radius (R2) * | mm | 6650 | 7135 | 7320 | 8100 |
| Min. Vertical Working Radius (R3) * | mm | 2280 | 2430 | 2540 | 2440 |
| Max. Height (H1) * | mm | 6150 | 6100 | 6350 | 6660 |
| Max.Working Depth (H2) * | mm | 5220 | 5860 | 5760 | 6440 |
| Rotation | 360° | 360° | |||
| Pedestal Size | mm | 1400 | |||
| Hydraulic Hammer Model | SKE 22 HD - SKE 30 HD | ||||
| Power Of Hydraulic Power Unit | Kw | 75/90 | |||
